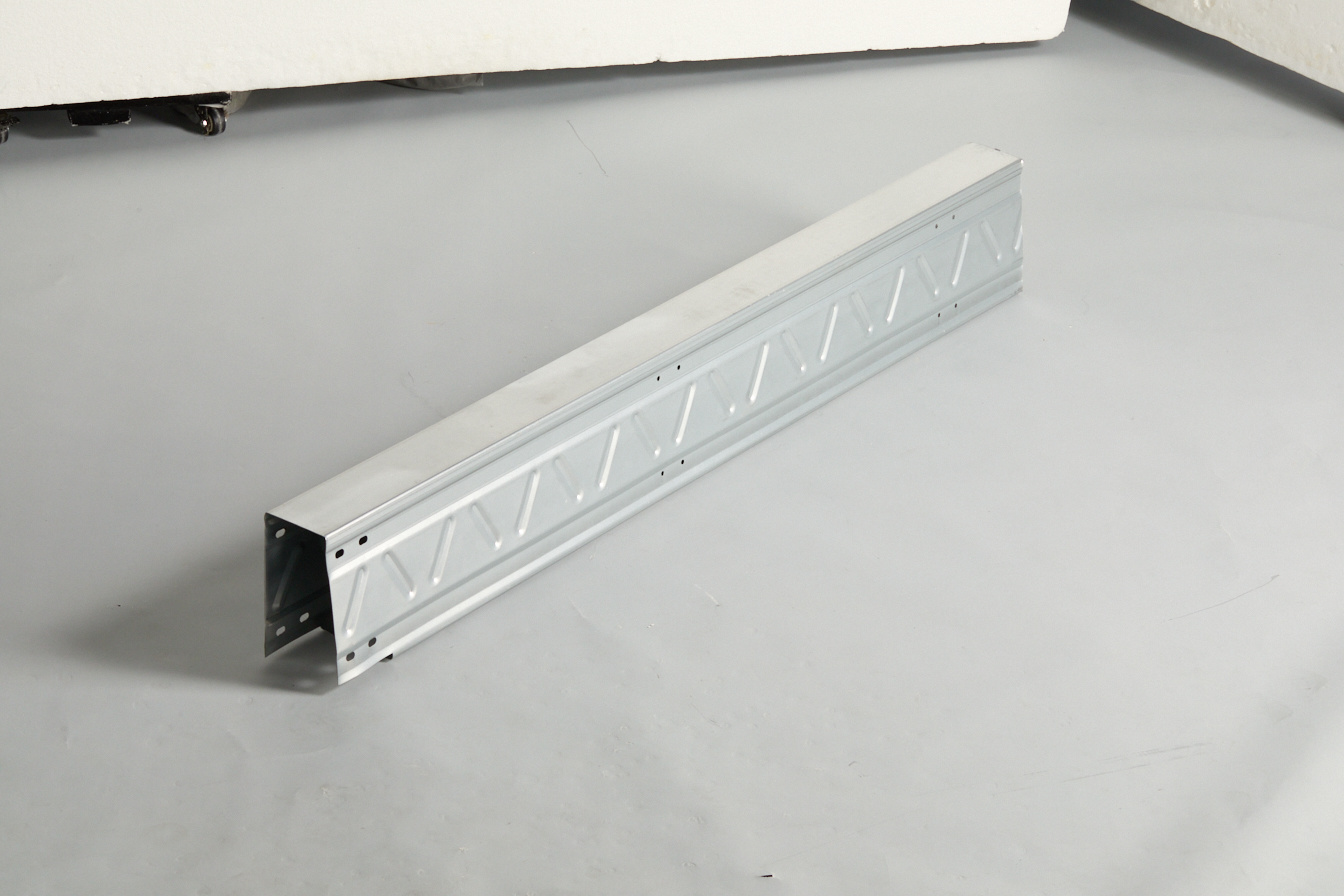

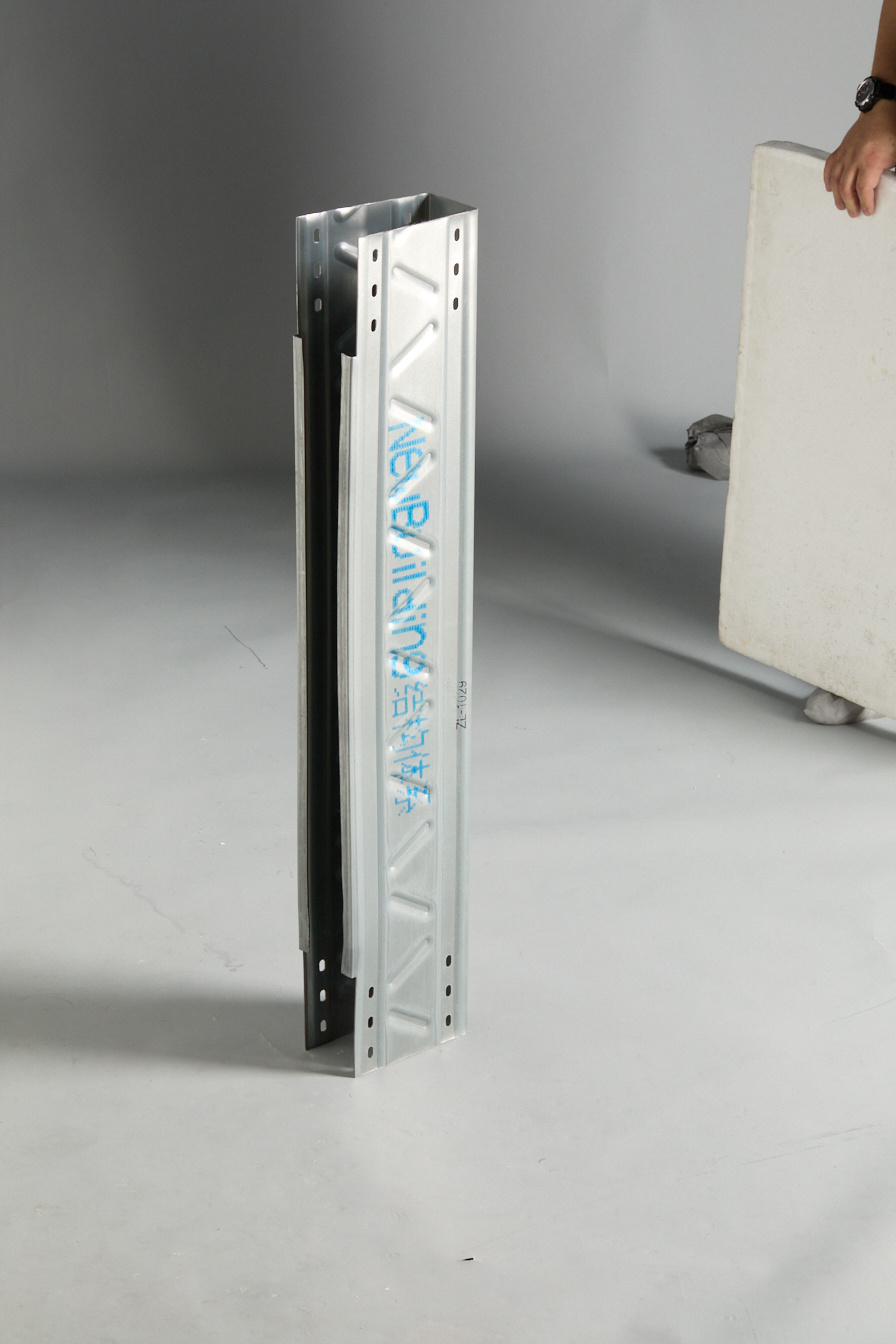

195 inner flipped edge - eight shaped reinforcing rib
Classification:
Product Details
Material: Q355B, surface treated with galvanized 275g/㎡ or galvanized aluminum magnesium 275g/㎡.
Specifications: The font size is 148 x 90, the inner edge size is 153 x 90, and 195 x 90 (thickness can be determined according to design requirements).
Main beam: The roller pressed ribs on both sides of the web plate of the cross section steel can provide better bearing capacity and stability, and the cold pressed cross section steel beam has strong resistance to pressure. Mainly used in locations with high load-bearing capacity and supporting wall steel beams.
Secondary beam: The roller pressed ribs on both sides of the web plate of the cross section steel can provide better bearing capacity and stability, and the cold pressed cross section steel beam has strong resistance to pressure.
Mainly used for layout space bearing, the secondary beam can be laid with lightweight floor bearing plates, cement pressure plates, European pine plates, and a conventional laying spacing of 610mm. The section and spacing of the secondary beam are selected according to the bearing capacity, and the designed bearing capacity is 300kg/㎡.
Patent number: ZL202130585940.2
