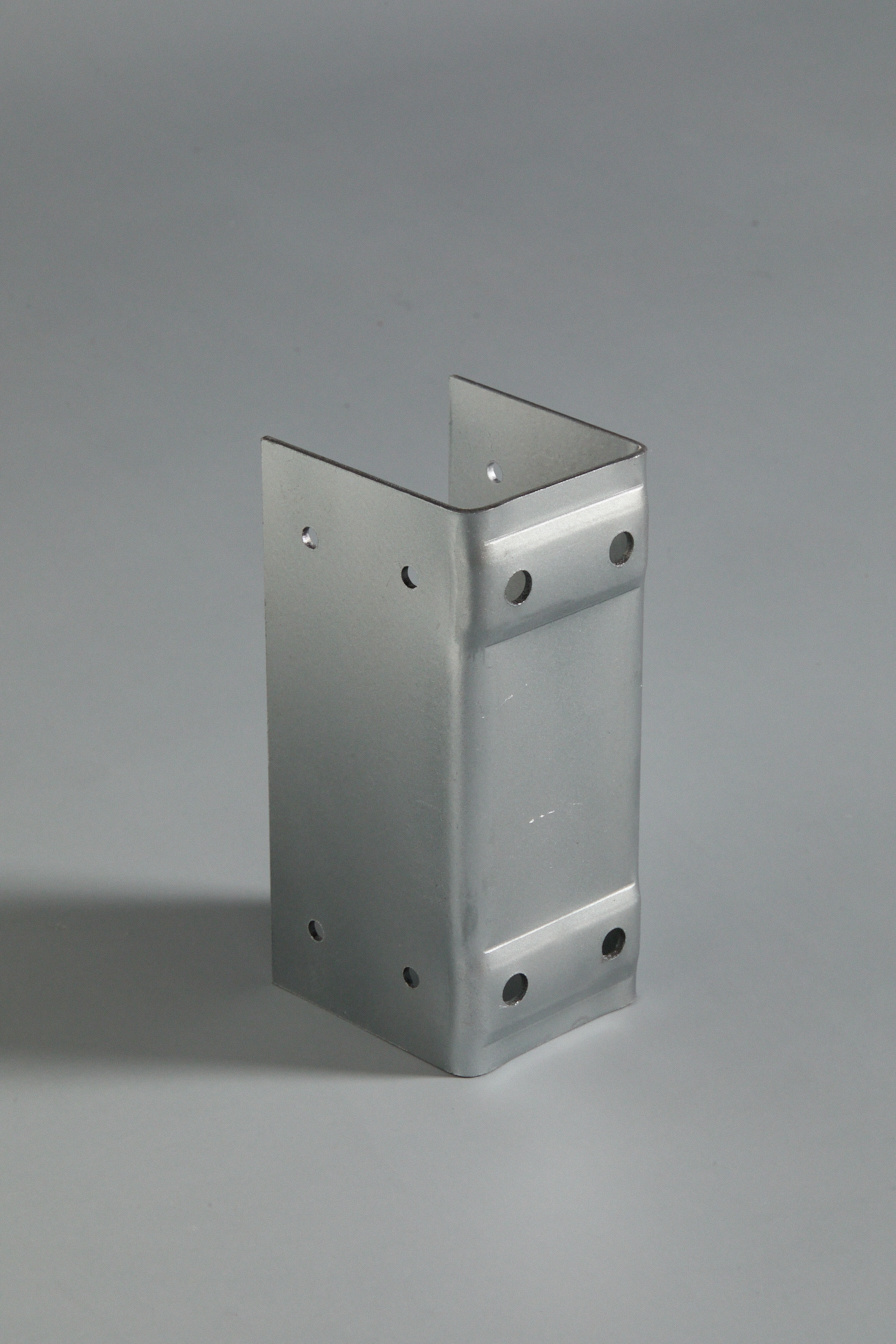

Frame small U connector
Mainly used for connecting the transverse main beam and the longitudinal secondary beam, the back of the small U-shaped connector is fastened to the transverse main beam web plate with M8 × 25 self tapping screws, and the two sides of the U-shaped connector are fastened to the end of the secondary beam with M8 × 25 self tapping screws. The roller pressed ribs on both sides of the U-shaped connector are closely attached to the curve of the main beam ribs, which can achieve better stability.
Classification:
Product Details
Material: Q355B, surface treated with galvanized 275g/㎡ or galvanized aluminum magnesium 275g/㎡.
Mainly used for connecting the transverse main beam and the longitudinal secondary beam, the back of the small U-shaped connector is fastened to the transverse main beam web plate with M8 × 25 self tapping screws, and the two sides of the U-shaped connector are fastened to the end of the secondary beam with M8 × 25 self tapping screws. The roller pressed ribs on both sides of the U-shaped connector are closely attached to the curve of the main beam ribs, which can achieve better stability.
Patent number: ZL201810498728. X
