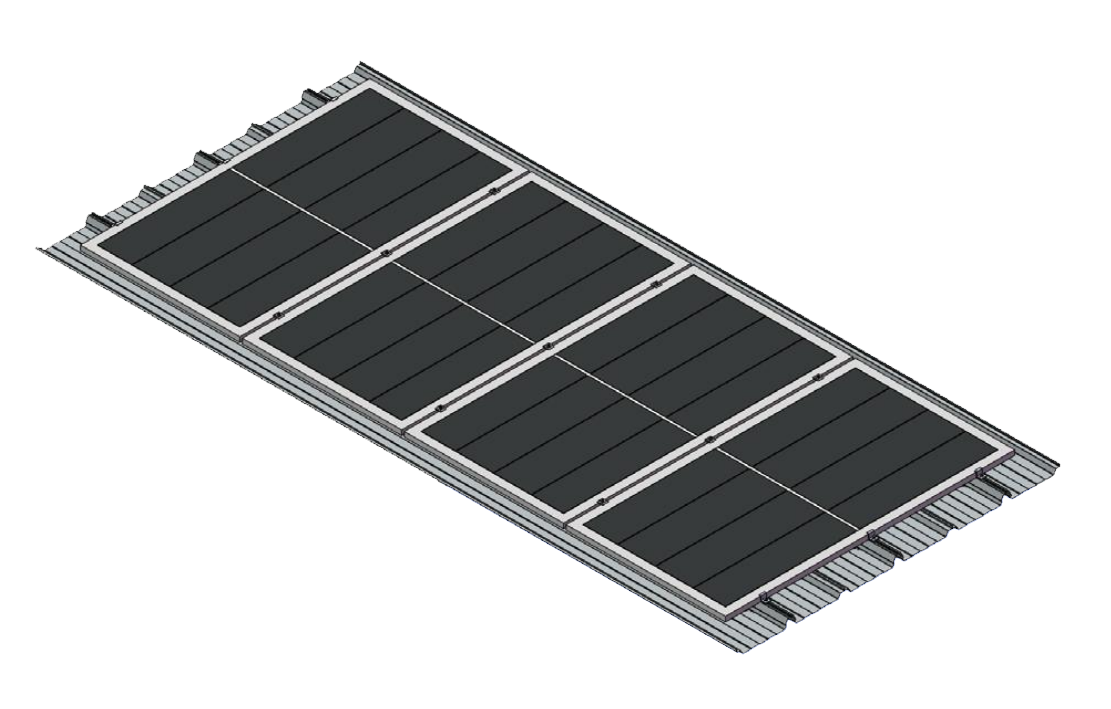

BIPV Bracket Roof Integrated Panel
Classification:
Product Details
Six major advantages
• Safety, applicability, economy, aesthetics, reliability, and convenience
Three major innovations
• New 360 ° upright locking edge 770 watt model
• Adapt to various sizes of photovoltaic modules

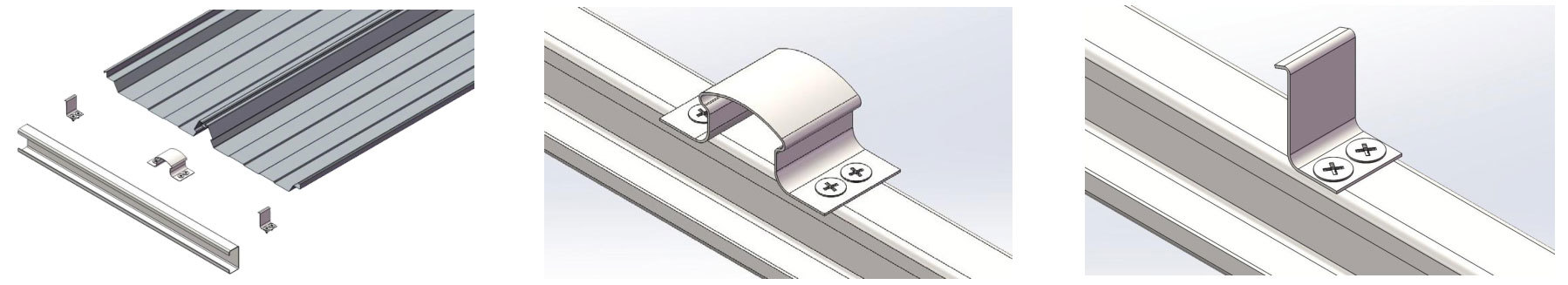

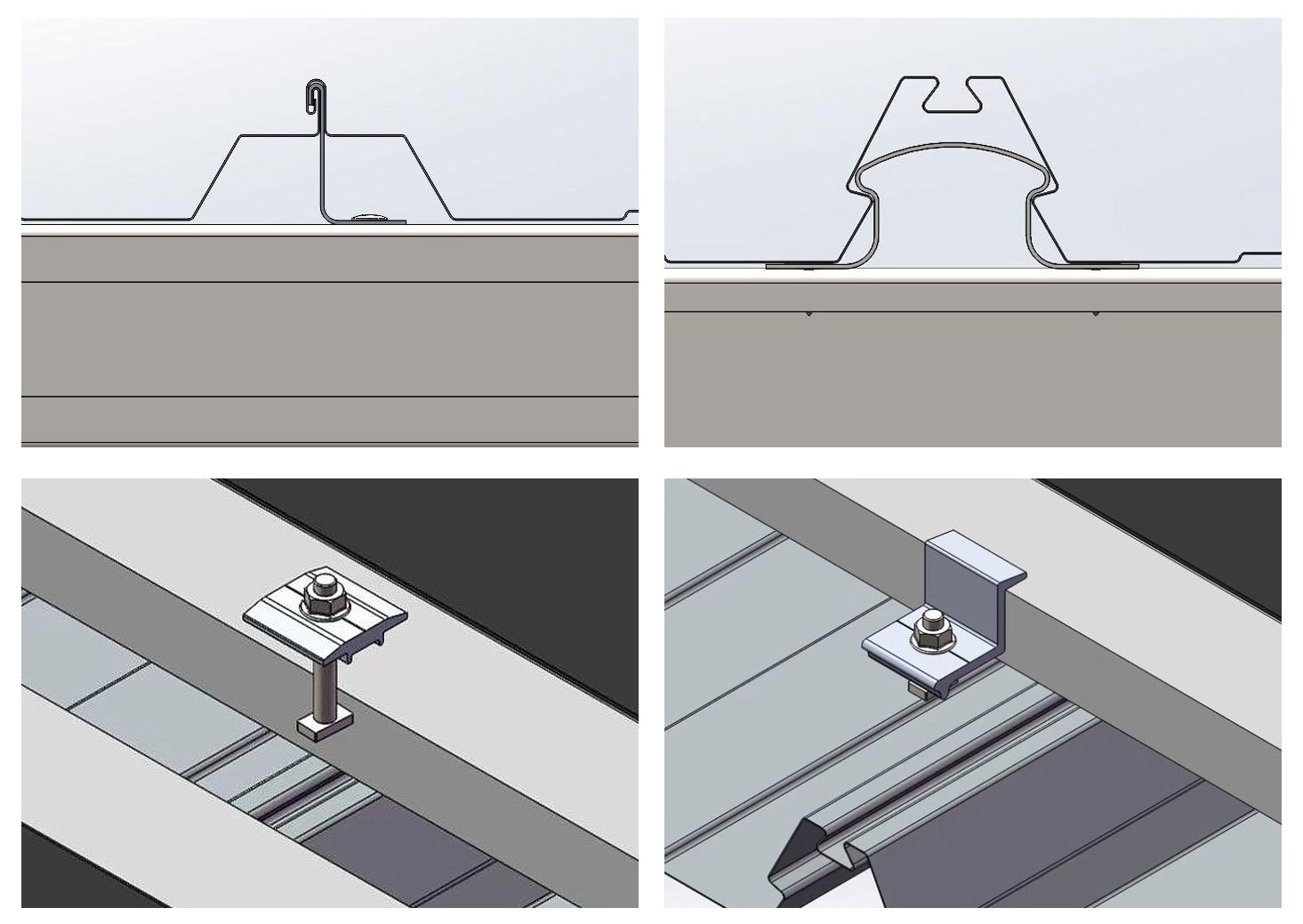

• New fixing methods for components and steel plates
Structural waterproofing

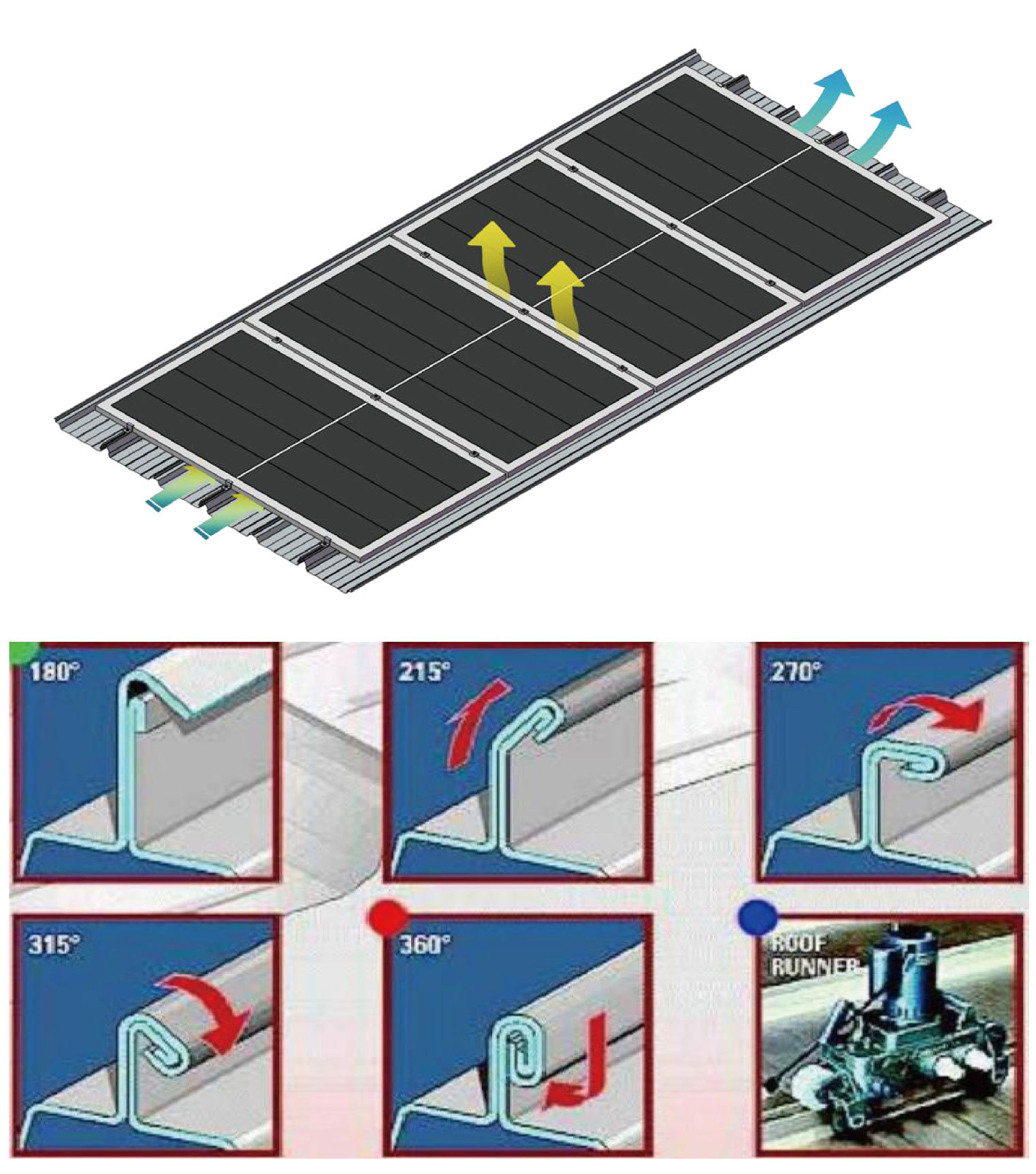

Using 30 years of mature technology -360 ° vertical locking edge technology, making the product more secure
High resistance to wind exposure
Within a width of 770, with 3 support points and a middle barbed reinforced support, it can resist typhoons of level 13
Good heat dissipation
The product is equipped with a dedicated heat dissipation channel that utilizes natural air flow for heat dissipation, reducing the temperature of components and steel plates:
1. Can effectively increase power generation
2. Effectively reducing summer air conditioning energy consumption in buildings
Lower costs
Small size fasteners, no bracket, lower cost
More power generation
Vertical locking edge with no shadow obstruction and no dust accumulation design, which can effectively increase battery power
Easy to install
The installation tool is simple, and installation and disassembly are very convenient. It can be installed by a single person
service life
The service life can reach more than 25 years, and there is a wide selection of steel plate materials. Zinc aluminum magnesium color coating, zinc aluminum magnesium fluorocarbon, stainless steel plate, etc
Efficient construction
Construction is not affected by the environment, and can be carried out all year round without being affected by temperature

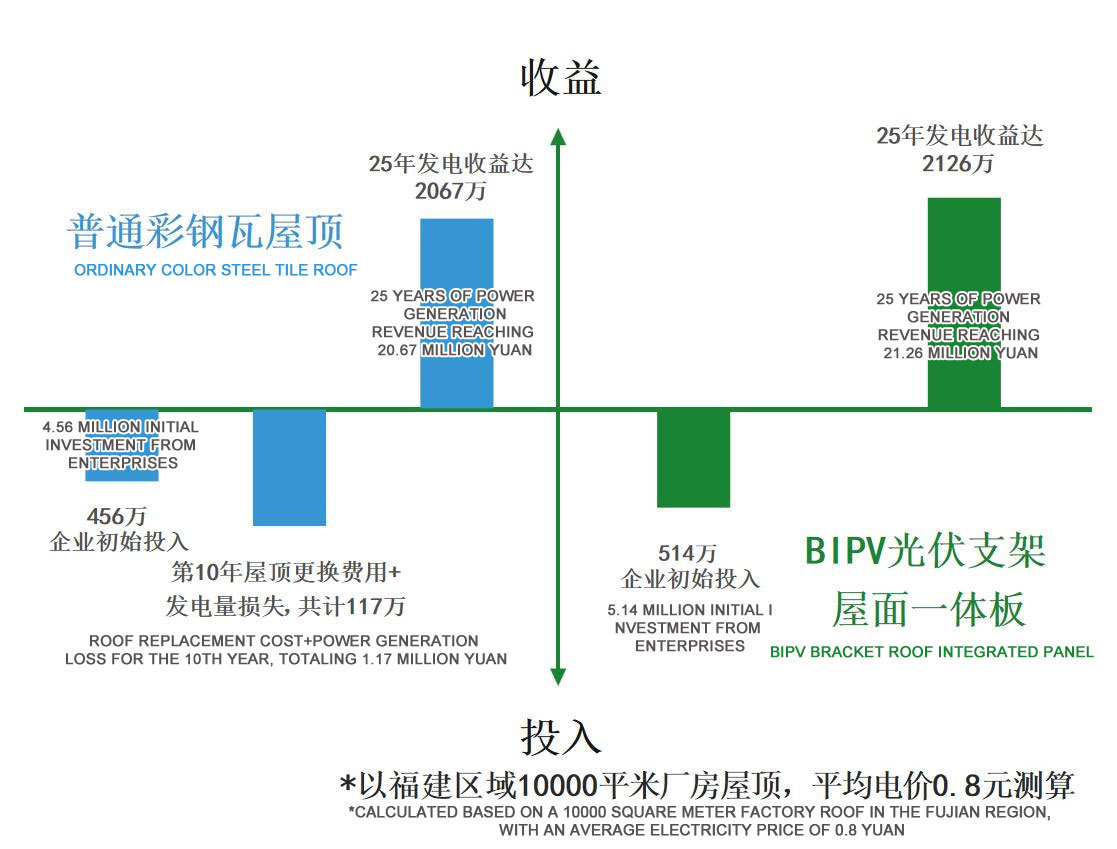

| comparing the costs and benefits of installing a 1.2MW PV system on a 10,000 square meter rooftop in Fujian Province (low-voltage grid-connected). | (unit: 10,000 yuan;). | ||
| expense items | ordinary color steel tile roof | BIPV PV bracket roof integrated board | |
| initial investment | PV system | 456 | 438 |
| color steel tile | / | 66 | |
| the cost of roof disassembly | / | 12 | |
| total | 456 | 514 | |

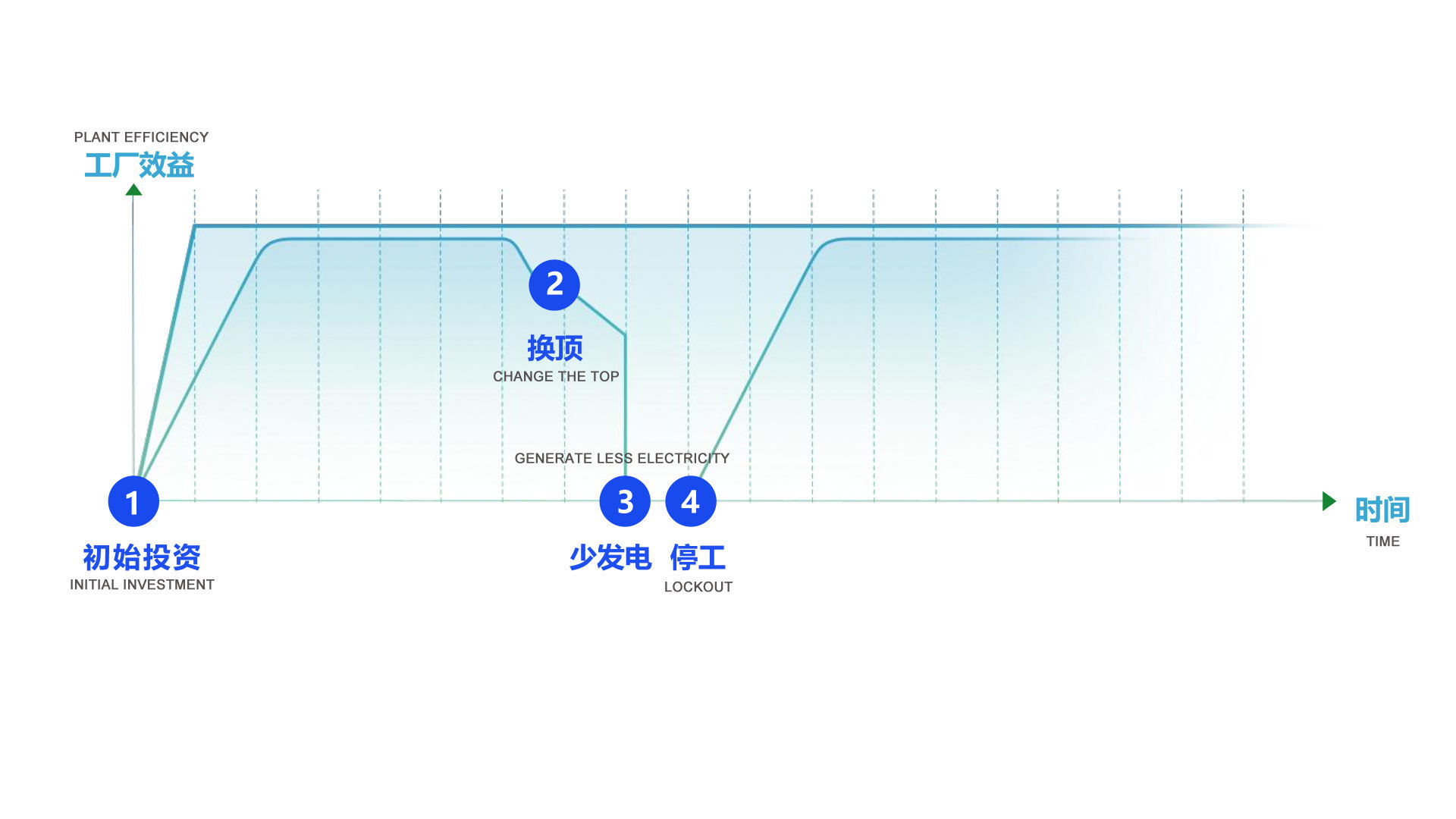

| renovation cost | color steel tile | 60 | / |
| the cost of roof disassembly | 12 | ||
| PV disassembly and installation costs | 36 | / | |
| power loss | 9 | / | |
| total | 117 | 0 | |
| lifecycle investment comparison | 514 | 514 | |
| PV revenue | 2640 | 2640 | |
| net income | 2067 | 2126 | |
| cost per watt | 4.8 yuan↑ | 4.3 yuan↓ | |
| Note: The price of photovoltaic system varies due to materials, labor, specific construction plans, etc., and the calculation is only used as a reference; PV revenue may vary due to local lighting and installation conditions, and is estimated for reference only. | |||
