Spiral pile connectors

Material: Q235B, Q355B, surface treatment, hot-dip galvanized with an average zinc layer thickness of not less than 80 μ M.

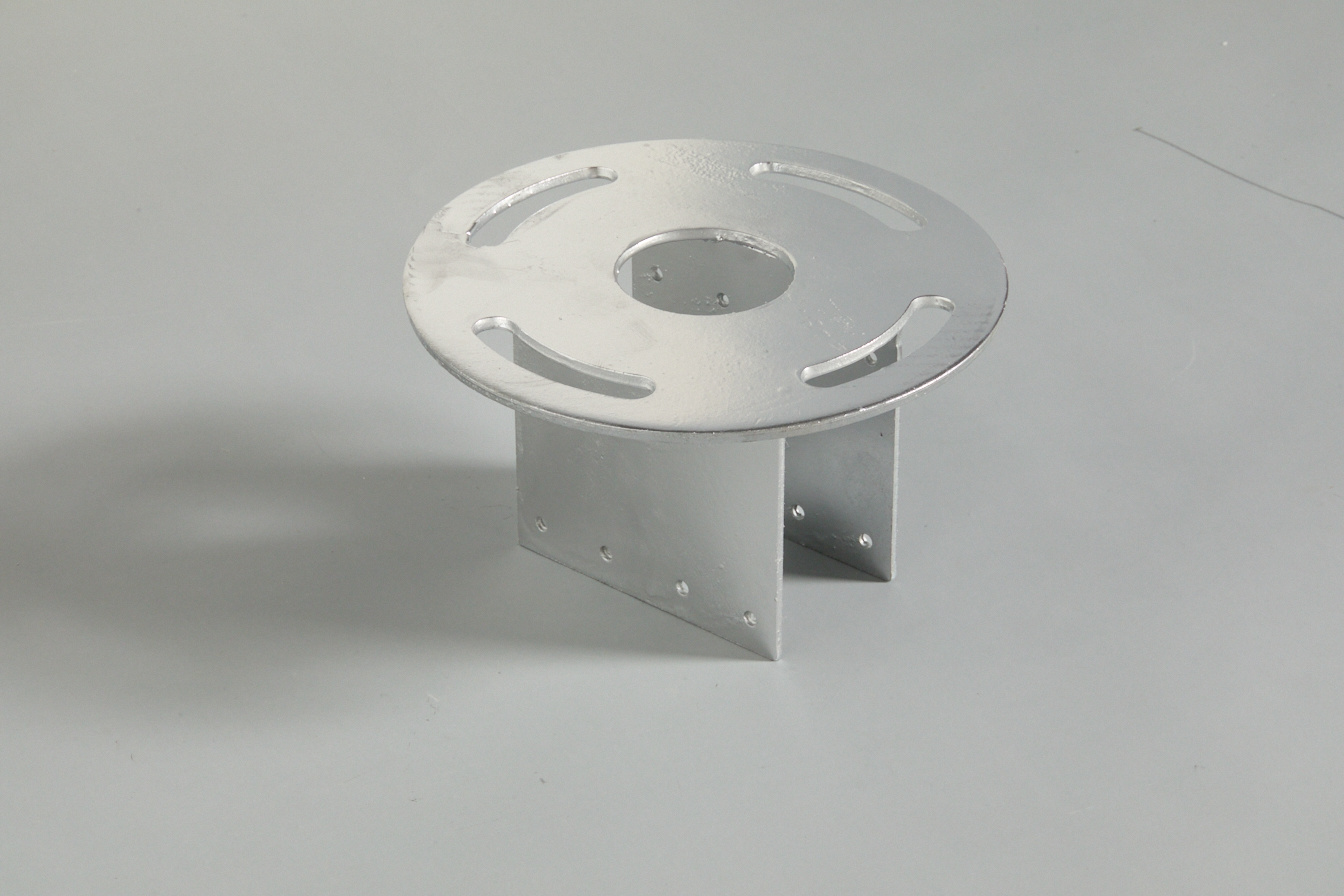

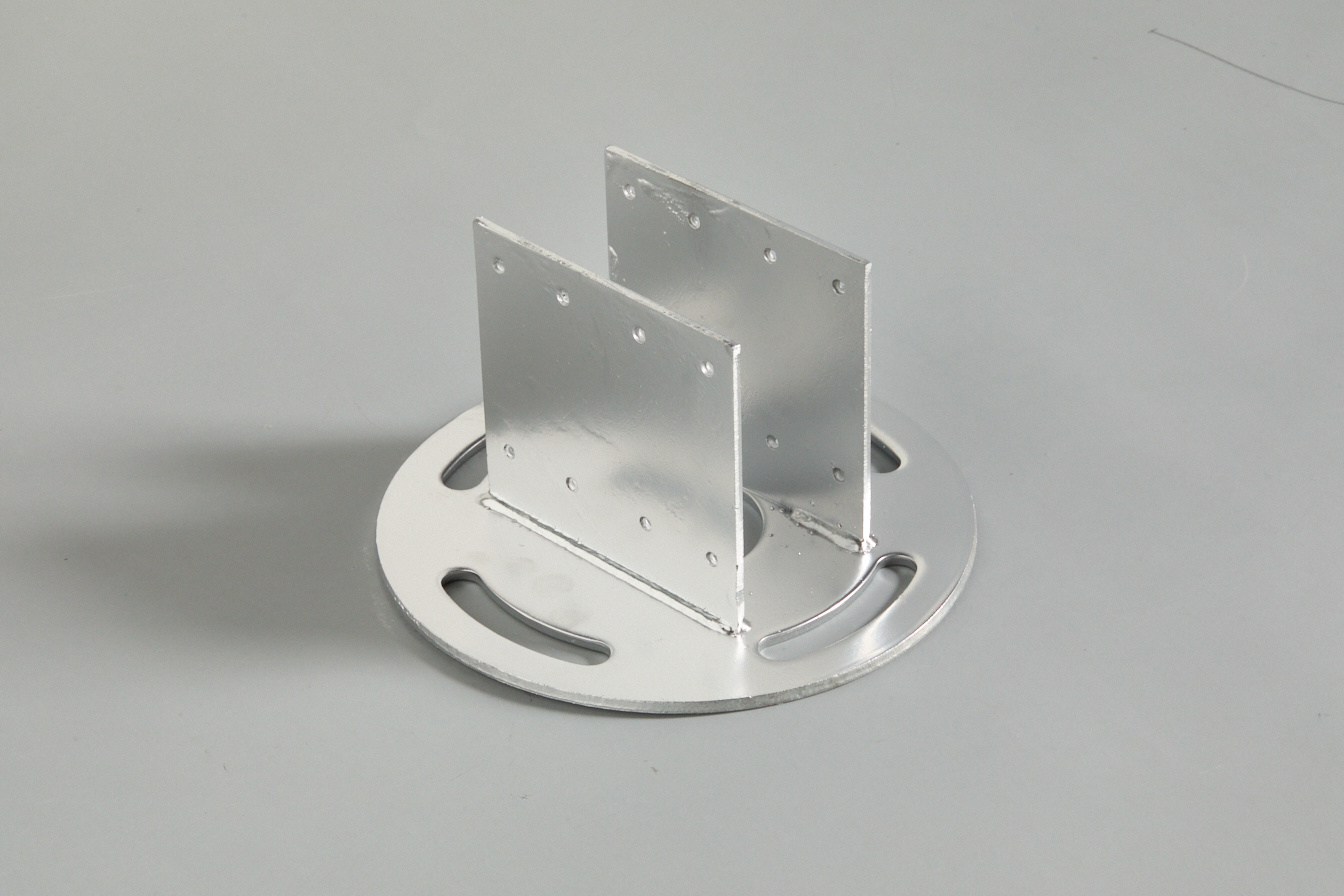

The spiral pile connector is welded from two vertical plates and a flange plate. The two vertical plates are used to connect the main beam, and the flange plate is used to connect the spiral pile. The connector is the position where the end of the spiral pile is connected to the main beam. The spiral pile is designed with 16 elongated holes, and the connector is designed with 4 curved holes.

Can solve problems during spiral pile construction:
1. Resolve displacement deviation of screw piles and connectors (± 15mm)
2. Ensure the orientation of the connectors

Patent number: ZL201820772149.5
